PiMesh-1W

🚀 PiMesh-1W

1-Watt LoRa HAT for Raspberry Pi

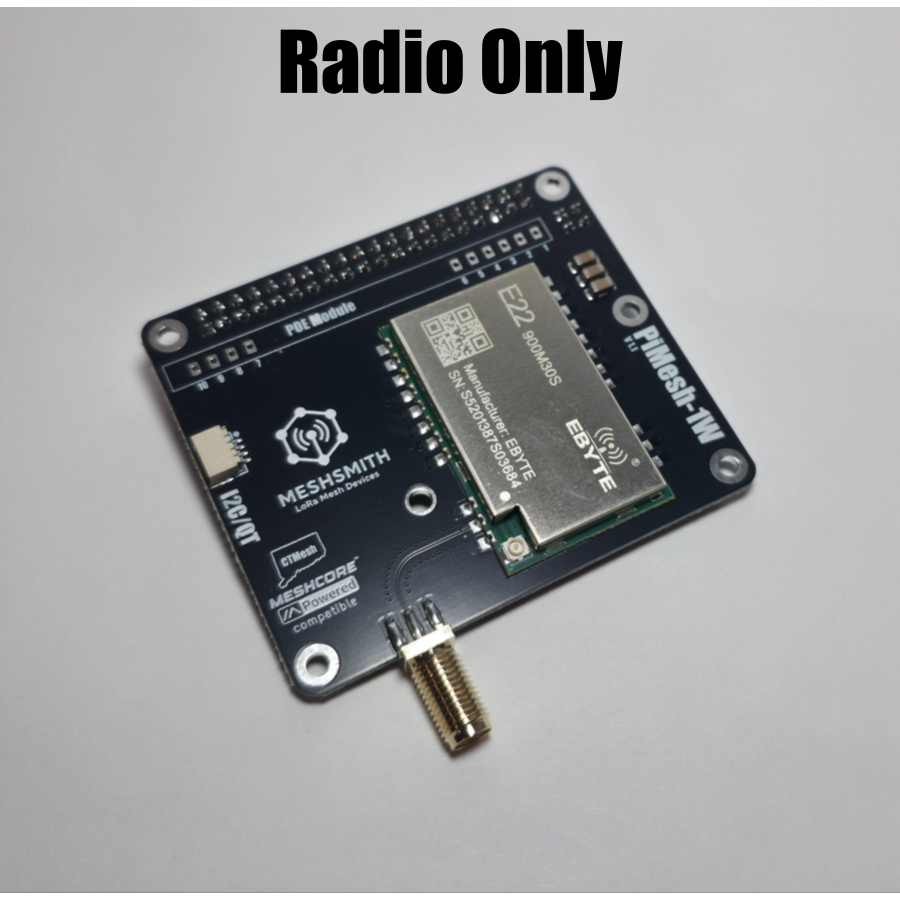

Need serious range? The PiMesh-1W gives your Raspberry Pi a full 1 W (30 dBm) of LoRa power using the Ebyte E22-900-30S module. That’s several times stronger than typical SX1262 boards — perfect for long-range Meshtastic, Meshcore, IoT, and telemetry.

Why This Board?

Most LoRa boards run 21–22 dBm. A few reach ~27 dBm.
PiMesh-1W reaches the full 30 dBm (1 W) for maximum link budget.

Typical board transmit power:

• LILYGO T-Echo (SX1262): ~22 dBm
• Heltec V3 (SX1262): ~21 dBm
• Heltec V4 High-Power (SX1262): ~27 dBm
• PiMesh-1W (E22-900-30S): 30 dBm (1 W)

Features

• 🔥 1 W (30 dBm) LoRa Power — Serious long-range performance

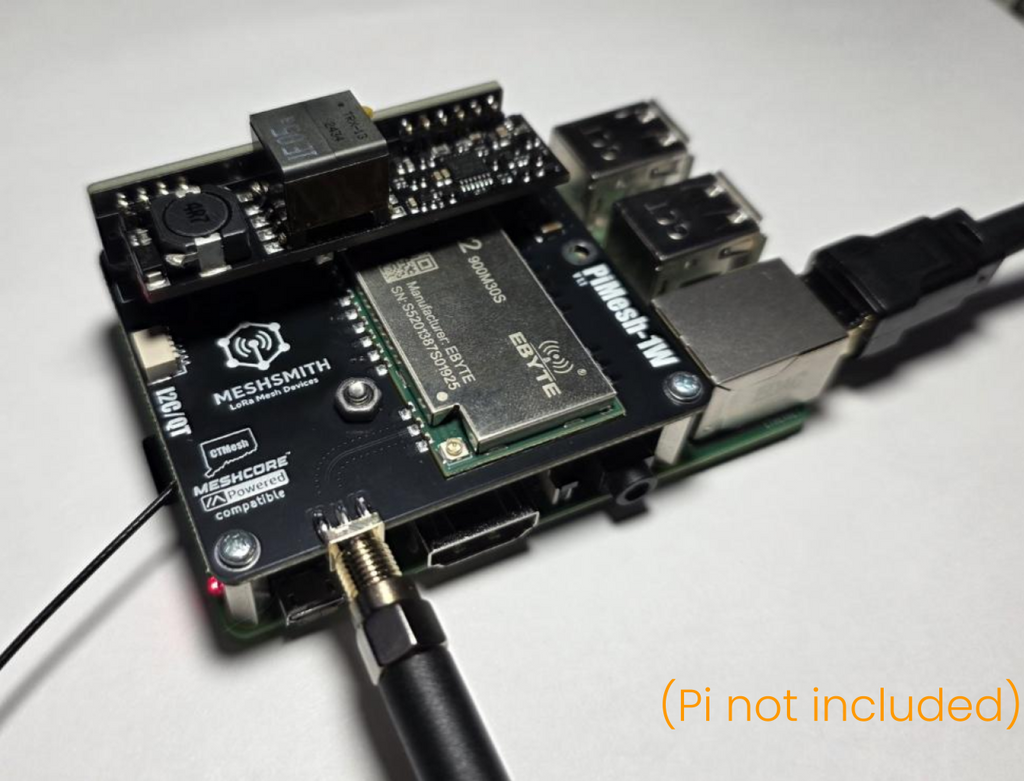

• 🧩 Full Raspberry Pi HAT — Drop-in compatibility
• 📡 868 / 915 MHz Support — Global mesh coverage
• 🛰️ Optional GPS Module — Adds location + timing
• ⚡ Optional PoE Module — Up to 9W
  • Not Compatible with Pi 5
• ⚡ Optional DIY PoE Header — Bring your own up to 30W
• 🔌 Stemma QT / Qwiic Port
  • Plug-and-play I²C
  • Works with Adafruit & SparkFun ecosystems
  • Great for sensors, screens, or environmental modules

Software & Integrations

• pyMC_Repeater, a Python mesh-core repeater system:
  https://github.com/rightup/pyMC_Repeater

• meshtasticd (lightweight Pi-based Meshtastic daemon)
  https://meshtastic.org/docs/software/linux/installation

Perfect For

• Fixed Meshtastic / Meshcore gateway nodes
• Long-range rural or woodland links
• High-power relay stations
• IoT and telemetry projects needing maximum reach

Notes

• ⚠️ Always follow RF rules for your region.
• The USA has specific restrictions when combining high power with high-gain antennas.
